Spiral Bevel Gears
Atlas Global supports gearbox manufacturers with spiral bevel gears sourced to your print for high-volume programs. We combine global sourcing with domestic quality control so parts arrive consistent and assembly-ready.
Spiral bevel gears can be sourced in fine or coarse pitches up to 36” OD, with ratios from 1:1 to 10:1 in left-hand or right-hand configurations. We source spiral bevel gears in annealed, hardened, and stainless steels, plus additional ferrous and nonferrous materials, backed by in-house ISO 9001 inspection and complete documentation.
Spiral bevel gears can be sourced in fine or coarse pitches up to 36” OD, with ratios from 1:1 to 10:1 in left-hand or right-hand configurations. We source spiral bevel gears in annealed, hardened, and stainless steels, plus additional ferrous and nonferrous materials, backed by in-house ISO 9001 inspection and complete documentation.
Specifications
MAX diameter
36” OD
MAX FACE WIDTH
6"
RATIO RANGE
1:1 - 10:1
PITCH RANGE
2-32 DP
Custom Spiral Bevel Gear Samples

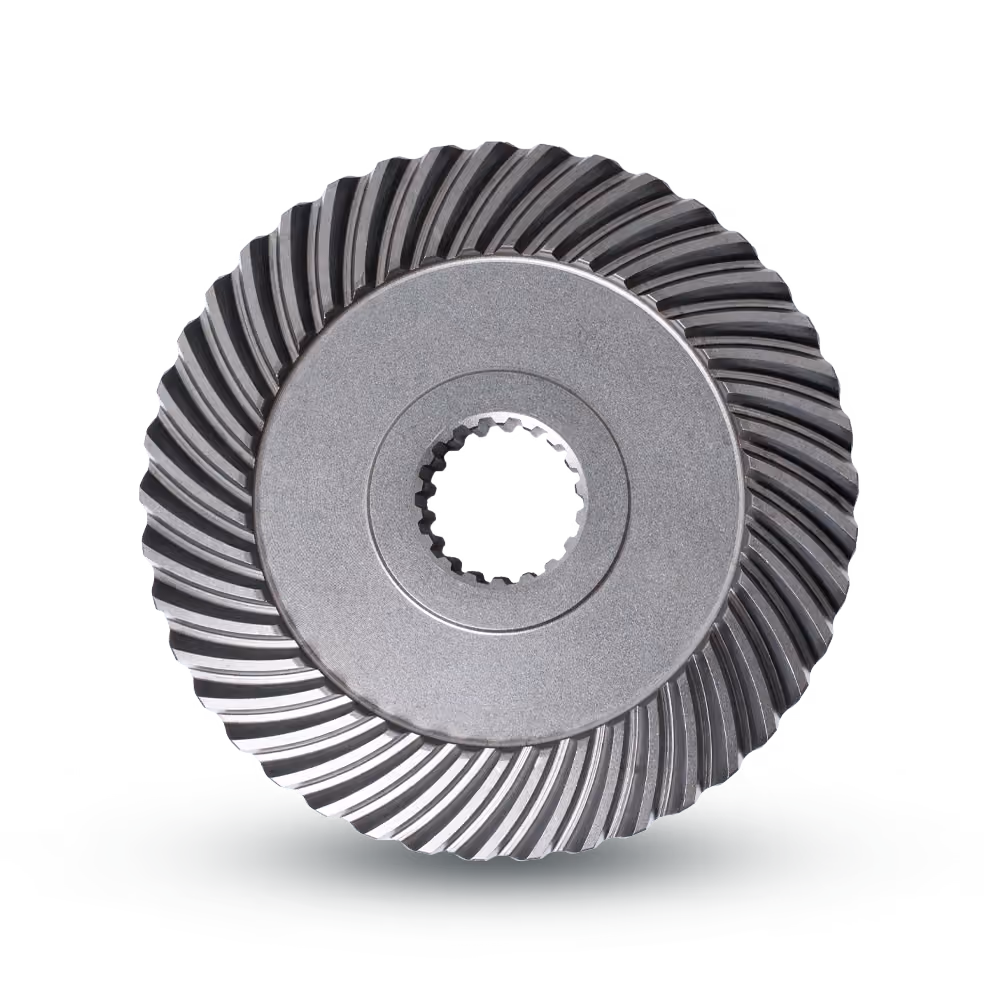

teeth
41
DIAMETRAL PITCH
6 DP
PRESSURE ANGLE
20°
PITCH DIAMETER
6.833"

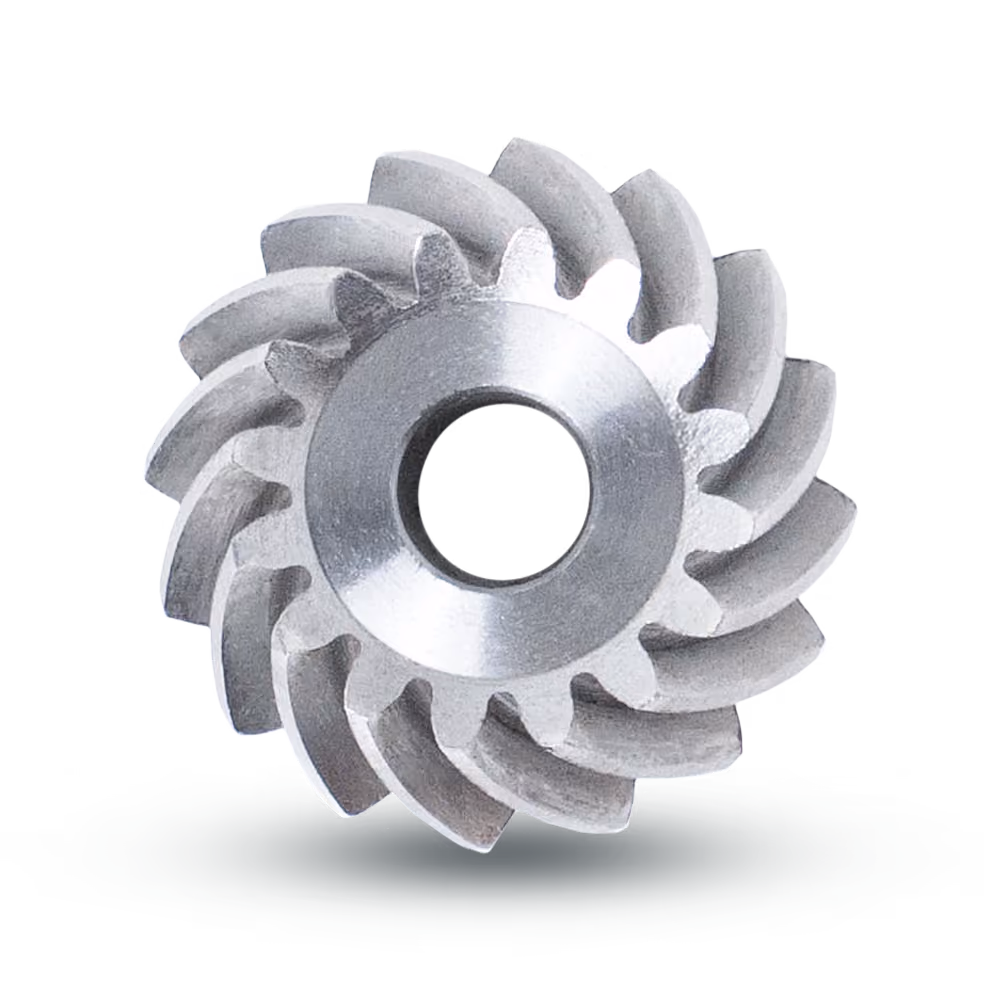

teeth
15
DIAMETRAL PITCH
5 DP
PRESSURE ANGLE
20°
PITCH DIAMETER
3.000"

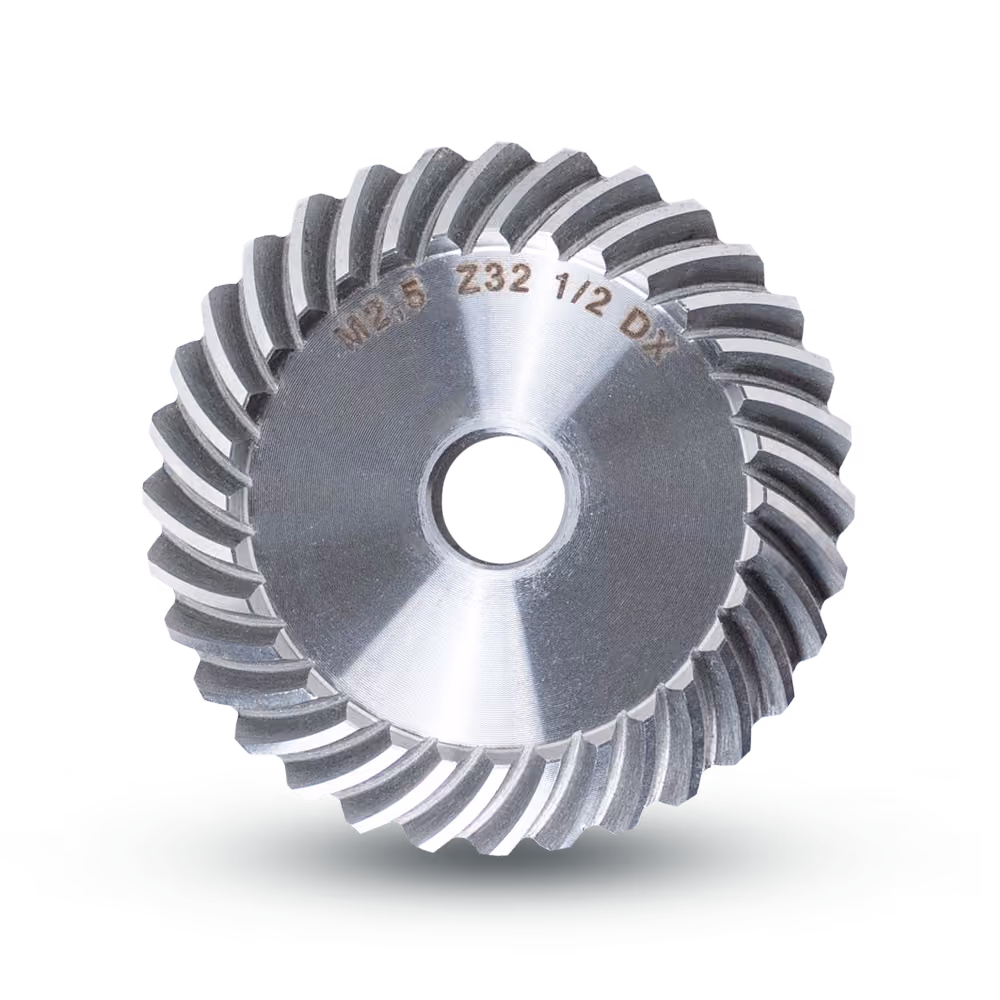

teeth
32
DIAMETRAL PITCH
M2.5 (~10 DP)
PRESSURE ANGLE
20°
PITCH DIAMETER
3.150"
Gear quality has been our priority since our founding in 1992, because your equipment depends on accuracy, repeatability, and long-term reliability.
From prototypes to AGMA 15 gears, each part is verified with in-house ISO 9001 inspection.
Explore Other Gears
Discuss your gear prints with an engineer.
Schedule a call today to get started on a gearbox component manufacturing quote. Send prints or models, target quantities, material requirements, and any inspection or documentation needs.
Get a Quote
