Spur Gears
Atlas Global supports gearbox manufacturers with internal and external spur gears built to your print for high-volume programs. We pair global sourcing with domestic quality control so incoming parts meet requirements and keep builds moving.
Spur gears can be produced through hobbing, shaping, shaving, and grinding processes, with capacities up to 30" OD and 2–64 DP. We produce and source spur gears in annealed, hardened, and stainless steels, plus other ferrous and nonferrous materials, backed by in-house ISO 9001 inspection and complete documentation.
Spur gears can be produced through hobbing, shaping, shaving, and grinding processes, with capacities up to 30" OD and 2–64 DP. We produce and source spur gears in annealed, hardened, and stainless steels, plus other ferrous and nonferrous materials, backed by in-house ISO 9001 inspection and complete documentation.
Specifications
MAX PART DIAMETER
30"
MAX FACE WIDTH
8.75"
PitcH Range
2 - 64 DP
Pressure ANgle
14.5 - 45°
Custom Spur Gear Samples
teeth
38/29
BORE
3.250"
Feature
Cluster Gear
teeth
24
DIAMETRAL PITCH
3 DP
Outer Diameter
8.66"
Feature
Full Fillet
teeth
41
PITCH DIAMETER
6.833"
FEATURE
Full Fillet

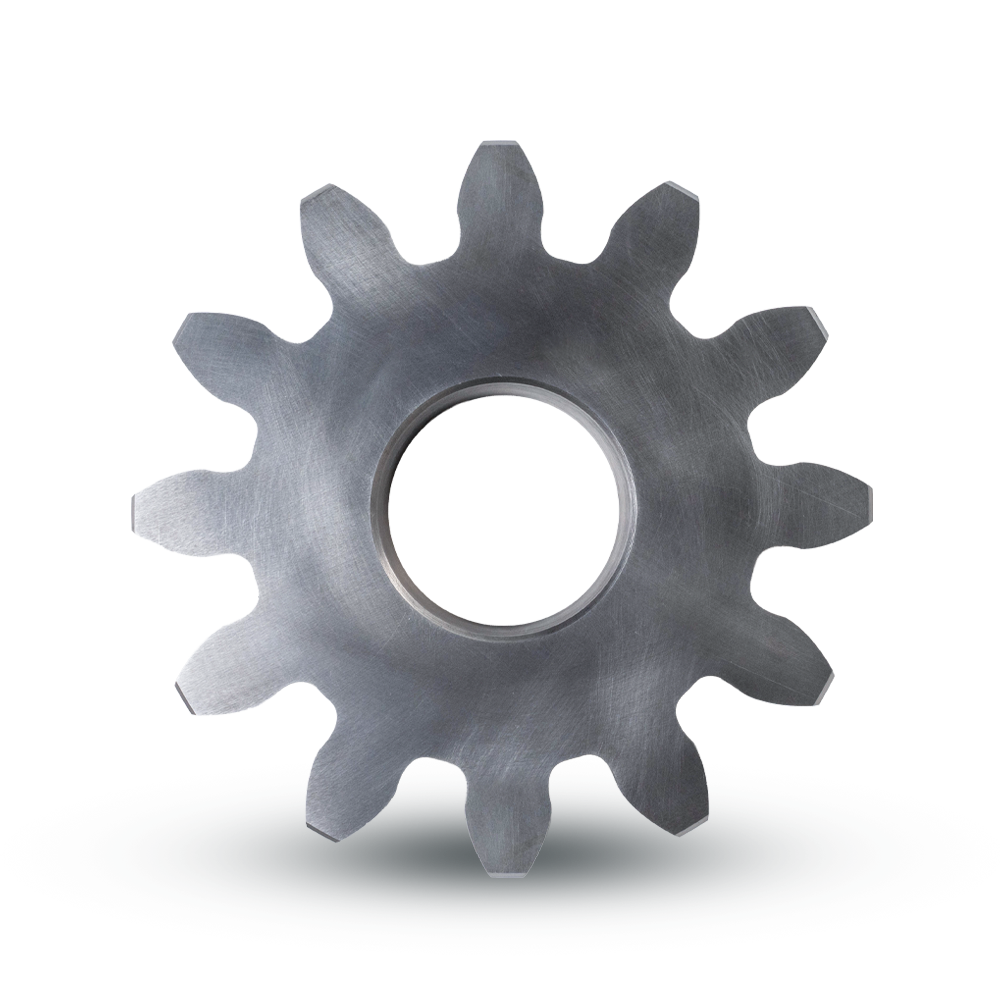

teeth
12
DIAMETRAL PITCH
1 DP
BORE
3.125"
Outer DIAMETER
14.000"
teeth
58
DIAMETRAL PITCH
6 DP
MAX RUNOUT
0.003"
OUTER DIAMETER
10.000"
Gear quality has been our priority since our founding in 1992, because your equipment depends on accuracy, repeatability, and long-term reliability.
From prototypes to AGMA 15 gears, each part is verified with in-house ISO 9001 inspection.
Explore Other Gears
Discuss your gear prints with an engineer.
Schedule a call today to get started on a gearbox component manufacturing quote. Send prints or models, target quantities, material requirements, and any inspection or documentation needs.
